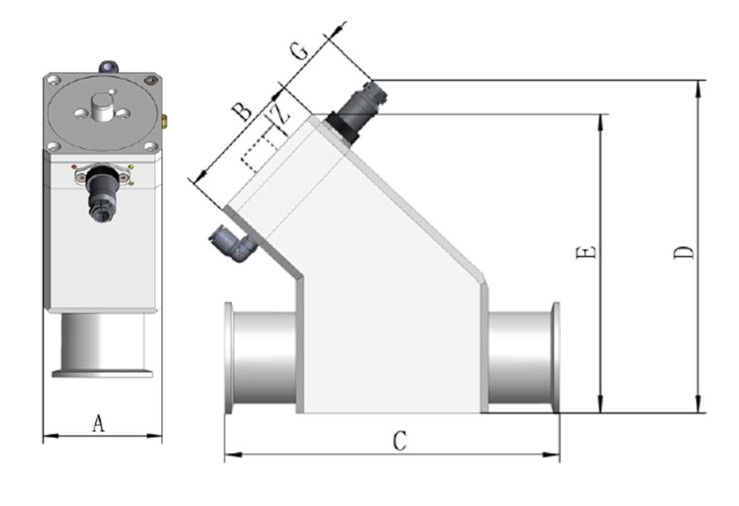

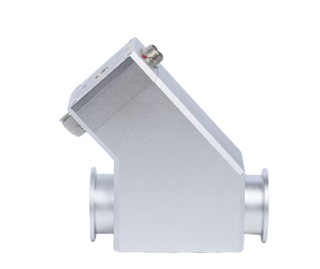

Integrated Block Valves
Able the withstand HF corrosion, the Integrated Block Poppet Valve series are robust but compact valves that comes with imbedded position sensing capability. Application includes aluminum chamber clean, high frequency operation, glove box battery roduction, etc.
Chemraz or Kalrez O-Rings are available.
Features
- X-ray transparent
- Integrated with solenoid and position indicator
- Small footprint
- Robust. Machined from a solid block.
- Over 6 millions cycle life
- Vacuum Range: 1×10-9torr
- Helium Leak Test: 1×10-9torr, cc/sec, He
- Max Temperature: 250ºC
- Material: Alum Body, SS316 Bellow
- Life Cycle: 6.5 million cycles
- Seal: Viton Seal
- Solenoid: 24 VDC
- Operating Pressure: 70-95 psi

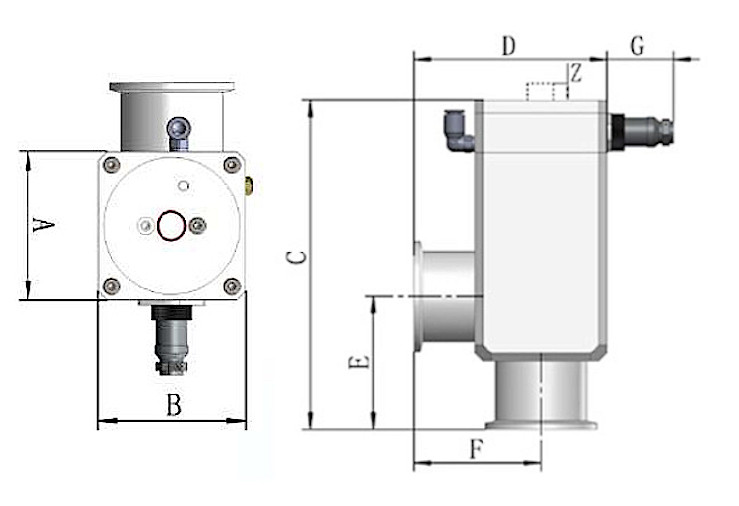

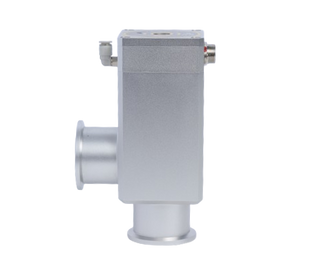

Integrated Block Angle Valve
- Vacuum Range: 1×10-9torr
- Helium Leak Test: 1×10-9torr, cc/sec, He
- Max Temperature: 250ºC
- Material: Alum Body, SS316 Bellow
- Life Cycle: 6.5 million cycles
- Seal: Viton Seal
- Solenoid: 24 VDC
- Operating Pressure: 70-95 psi
