Low Particle Poppet Valves

Low Particle(LP) poppet valve was field tested and proven to improve yield in a harsh or corossive environment such as Etch or CVD processes. The entire mechanisms are shielded and completely cleared from gas flow, thus creating a very clean environment. Can be installed upstream of the chamber if necessary. Sizes available in 1.0″, 1.5″ and 2.0″. To specify LP style, add -LP at the end of part number. Example: AVP-KF25-LP.

  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9  atm cc/sec of He
  • Bake temperature:  120oC
  • MTTF (life): 1,500,000 Cycle
  • Time from open-close: < 0.5 sec
  • Operating temperature: 20o to 100oC
  • Differential pressure: 15 psi
  • Position Indicator: 28 VDC or 115 VAC
  • Operating pressure: 60 – 95 psi

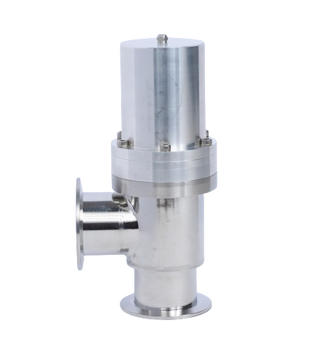

Pneumatic Stainless Low Particle Poppet Valve
